Model Details

Model Description

Mobile LSD (M-LSD) model is a real-time and lightweight line segment detector for resource-constrained environments. Detected line segments are crucial visual features in low-level vision, which provide fundamental information to higher-level vision tasks such as pose estimation, structure from motion, 3D reconstruction, image matching, wireframe to image translation, and image rectification.

Developed by: NAVER/LINE Vision
Shared by:
Model type: Computer vision
License:
Resources for more information:

Training Details

Training Data

was used for training. It consists of 5,000 training and 462 test images of man-made environments. For more information about training data check the .

Testing Details

Metrics

For evaluation and were used. YorkUrban dataset has 102 test images. Evaluated metrics include heatmap-based metric F^H , structural average precision (sAP), and line matching average precision (LAP).

Wireframe evaluation

Model	F^H	sAP^5	LAP
M-LSD-tiny	77.20	52.30	57.90

YorkUrban evaluation

Model	F^H	sAP^5	LAP
M-LSD-tiny	62.40	22.10	28.30

Results are taken from .

Technical Specifications

Input/Output Details

Input:
- Name: input
  - Info: 0-255 BGR un-normalized image.
Output:
- Name: multiple (see NN archive)
  - Info: intermediate outputs that will be processed by MLSD parser.

Model Architecture

The M-LSD and M-LSD-tiny models are lightweight encoder-decoder architectures. They use MobileNetV2-based encoder networks. The decoder network combines blocks of types A, B, and C, with block type A for feature map concatenation and upscaling, block type B for residual 3x3 convolutions, and block type C for dilated and 1x1 convolutions. Please consult the for more information on model architecture.

Throughput

Model variant: m-lsd-tiny:512x512

• Input shape: [1, 3, 512, 512] • Output shapes: [[1, 9, 256, 256], [65536]]

• Params (M): 0.614 • GFLOPs: 4.293

Platform	Precision	Throughput (infs/sec)	Power Consumption (W)
RVC2	FP16	12.08	N/A

* Benchmarked with , using 2 threads (and the DSP runtime in balanced mode for RVC4).

* Parameters and FLOPs are obtained from the package.

Utilization

Models converted for RVC Platforms can be used for inference on OAK devices. DepthAI pipelines are used to define the information flow linking the device, inference model, and the output parser (as defined in model head(s)). Below, we present the most crucial utilization steps for the particular model. Please consult the docs for more information.

Install DAIv3 and depthai-nodes libraries:

pip install depthai
pip install depthai-nodes

Define model:

model_description = dai.NNModelDescription(
    "luxonis/m-lsd-tiny:512x512"
)

nn = pipeline.create(ParsingNeuralNetwork).build(
    <CameraNode>, model_description
)

Inspect model head(s):

MLSDParser that outputs message (detected lines).

Get parsed output(s):

while pipeline.isRuning():
    parser_output: Lines = parser_output_queue.get()

Example

You can quickly run the model using our script. It automatically downloads the model, creates a DepthAI pipeline, runs the inference, and displays the results using our DepthAI visualizer tool. To try it out, run:

python3 main.py \
    --model luxonis/m-lsd-tiny:512x512

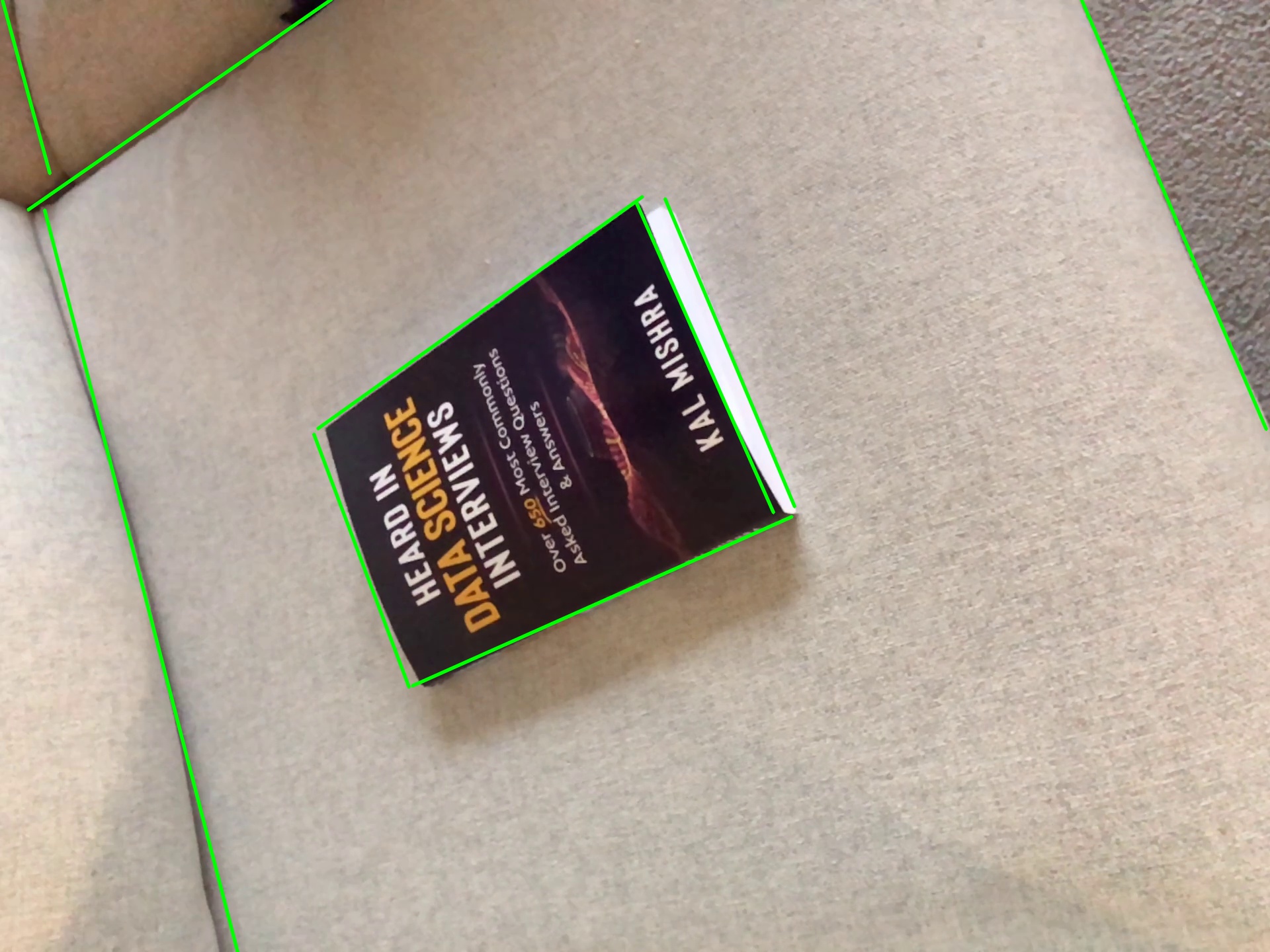

Line detection model.
License	Apache 2.0 Commercial use
Downloads	272
Tasks	Line Detection
Model Types	ONNX
